Robotic Blossom Thinning System

The Robotic Blossom Thinning System consisted of machine vision system (Intel RealSense D435i) integrated with mechatronic system involving UR5e 6-degrees of freedom robotic manipulator and end-effector. End-effector was developed by using commercial string trimmers to cut grass. Initial segmentation of apple flower clusters was achieved through Mask-RCNN, followed by 3D cluster pose estimation. Manipulator motion planning utilized Robot Operating System (ROS) MoveIt. Thinning operations were executed by directing the end effector orthogonal to the cluster surface center or boundary. Details: (Bhattarai et al., 2024)

Canopy with segmented clusters and their pose

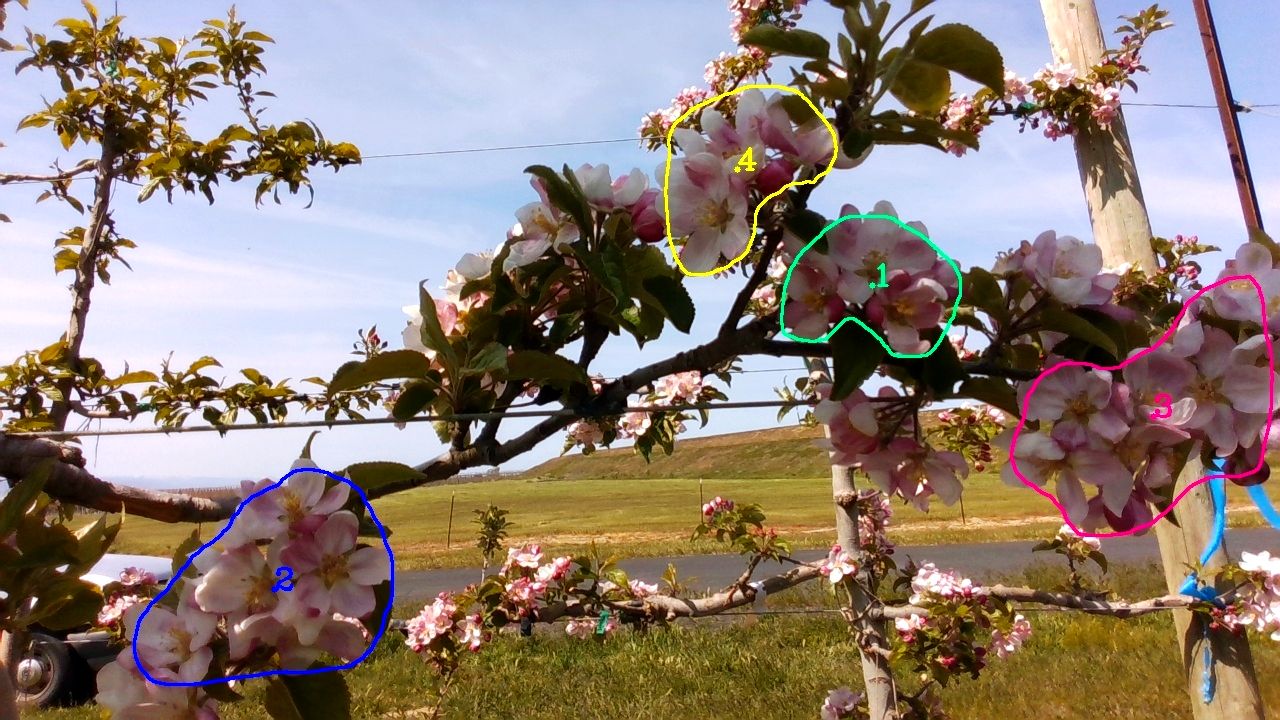

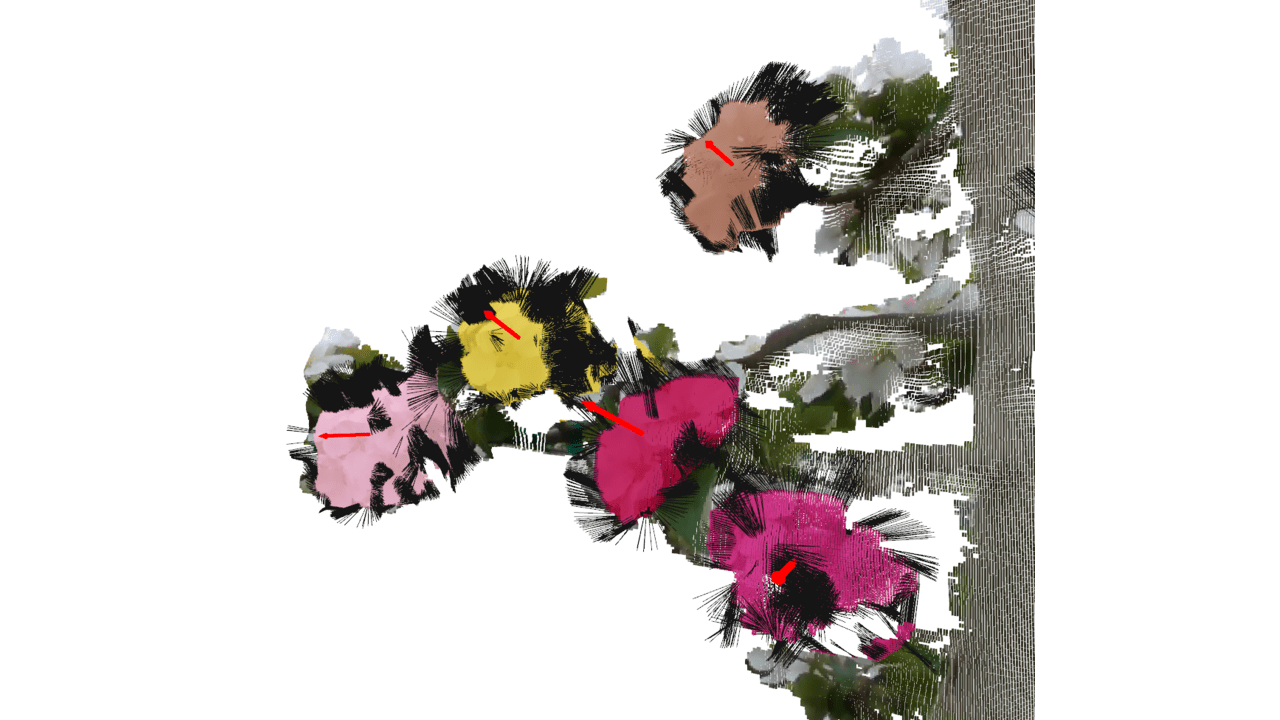

[Left] Segmentation results from Mask-RCNN algorithm during field trial. [Right] 3D visualization of apple canopy after cluster segmentation and pose estimation. Different colored clusters represent different instances of segmentation results. Black lines represent the surface normals of each point of the segmented clusters. The red arrows represent estimated cluster position and orientation, which were used to control the approach direction of the end-effector.

Integrated system during field evaluation in commercial apple orchard in Washington State, USA.

Two thinning approaches were used to evaluate the capability of system for proportional blossom thinning i) Boundary thinning: end-effector actuated around cluster boundary. ii) Center thinning: end -effector actuated at cluster centroid.

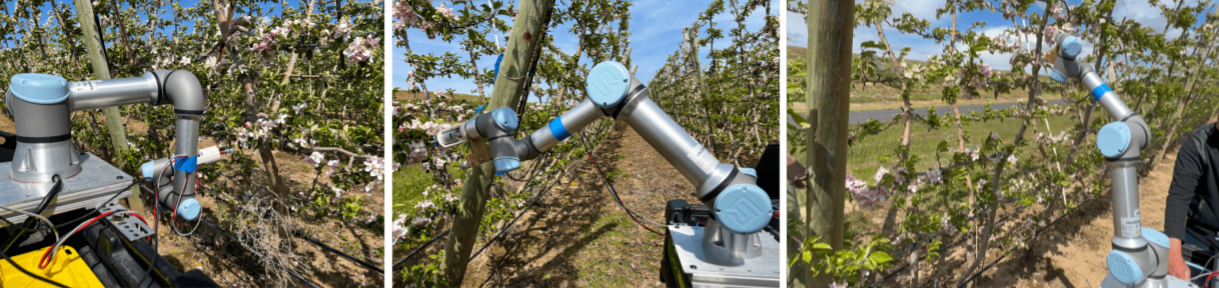

Images depicting integrated system in action during the field evaluation.

Boundary thinning approach thinned 67.3% of flowers from the target clusters with cycle time of 9.0 seconds per cluster. Center thinning approach thinned 59.4% of flowers with cycle time of 7.2 seconds per cluster.

Field evaluation of the proposed robotic thinning approach during Boundary Thinning and Center Thinning in commercial orcahrd environment.
